Element assemblies for Maco® beams. See list of parts included in each below.
Maco® Beam Driven & Director Element Assembly
QTY PART NO. DESCRIPTION
1 T11P 5/8" x 72" TUBING, SLOTTED ENDS
2 T01 1/2" x 72" TUBING
2 PL2 BLACK PLASTIC CAPS
2 W58P EXTRUDED ALUMINUM CLAMPS
2 S21 MACHINE SCREWS
2 N11 SQUARE NUTS
Maco® Beam Reflector Element Assembly
QTY PART NO. DESCRIPTION
1 T11P 5/8" x 72" TUBING, SLOTTED ENDS
2 T04 1/2" x 80-1/2" TUBING
2 PL2 BLACK PLASTIC CAPS
2 W58P EXTRUDED ALUMINUM CLAMPS
2 S21 MACHINE SCREWS
2 N11 SQUARE NUTS
Maco® Beam Quad Reflector Element Assembly - Single Wire
QTY PART NO. DESCRIPTION
2 T11P 5/8" x 72" TUBING, SLOTTED ENDS
4 FA1P 1/2" FIBERGLASS RODS, 1 HOLE
1 FHK-1 FIBERGLASS ROD HARDWARE KIT
1 W04P 40' COPPER WIRE
4 W58P EXTRUDED ALUMINUM CLAMPS
4 S21 MACHINE SCREWS
4 N11 SQUARE NUTS
Maco® Beam Quad Reflector Element Assembly - Multi Wire
QTY PART NO. DESCRIPTION
2 T11P 5/8" x 72" TUBING, SLOTTED ENDS
4 FA2P 1/2" FIBERGLASS RODS, 3 HOLES
3 FHK-1 FIBERGLASS ROD HARDWARE KIT
1 W05P 90' COPPER WIRE
4 W58P EXTRUDED ALUMINUM CLAMPS
4 S21 MACHINE SCREWS
4 N11 SQUARE NUTS

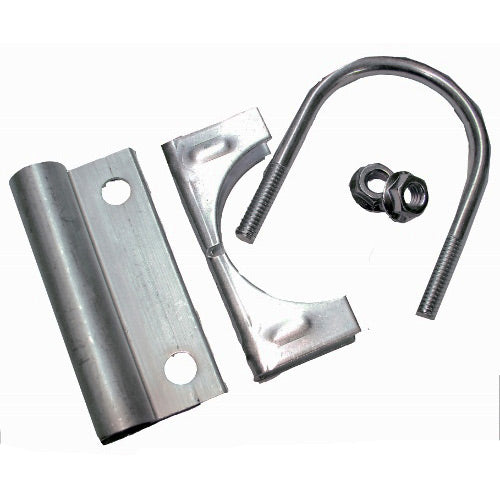

Maco® Element to 1-1/2" Boom Assembly
QTY PART NO. DESCRIPTION
1 BE1P 1-1/2" BOOM TO ELEMENT MOUNT
1 U02 1-1/2" U-BOLT
1 S02 1-1/2" SADDLE
2 N03 LOCKNUTS
Maco® Element to 2" Boom Assembly
QTY PART NO. DESCRIPTION
1 BE2P 2" BOOM TO ELEMENT MOUNT
1 U01 2" U-BOLT
1 S01 2" SADDLE
2 N03 LOCKNUTS
Maco® Element to 3" Boom Assembly
QTY PART NO. DESCRIPTION
1 BE3P 3" BOOM TO ELEMENT MOUNT
1 U03 3" U-BOLT
1 S03 3" SADDLE
2 N03 LOCKNUTS
Stainless hardware assemblies available on Element Mounting Page
